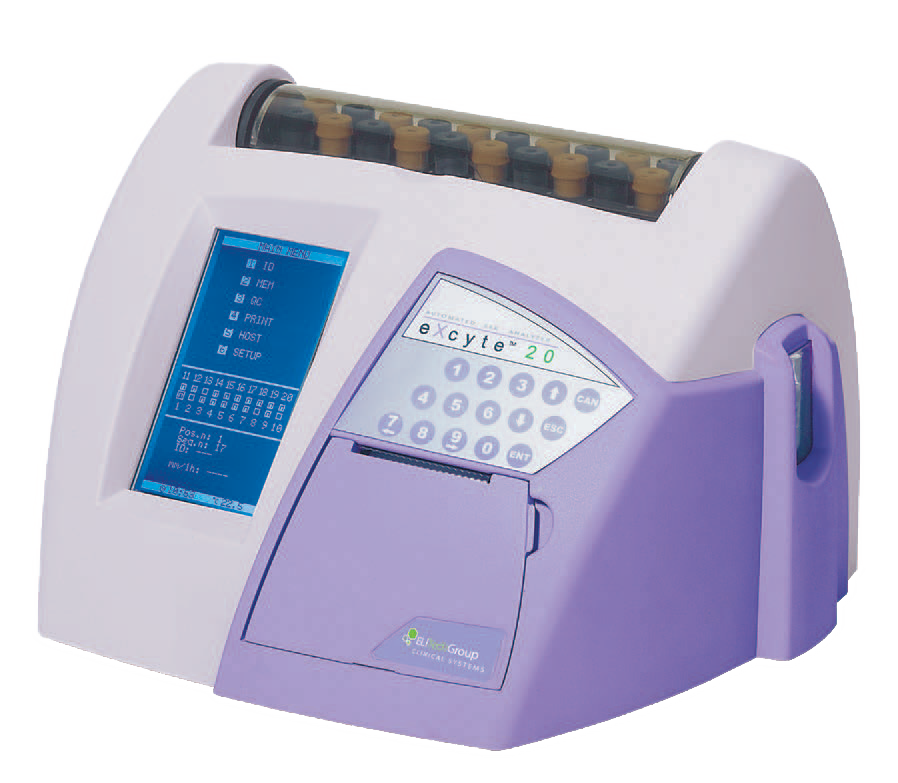

Excyte® 20 Automated ESR Analyzer

The Excyte 20 combines all the features you want in an automated ESR analyzer, with the high throughput capability you need. With 20 positions and 15 minute test time (optional 30-minute), the Excyte 20 performs up to 80 sed rate tests per hour. Plus, with features like onboard mixing, random access, onboard QC, positive sample identification, integrated barcode scanning, and closed tube testing, the Excyte 20 makes your sed rates easy to run.

Download brochure...

  • Gold Standard Testing
  • With excellent correlation to the gold standard Westergren method, the Excyte 20 provides results you can trust, regardless of disease state.
  • Patient Results Archive
  • Store up to 500 patient results with ID and retrieve them on screen or print at any time.
  • Onboard Quality Control
  • Enter lot number and value range entry for normal and abnormal controls, store daily QC results for quick retrieval, and automatically create Yudon Plot graphs to quickly analyze daily QC results.
  • Mixing
  • Onboard mixing improves consistency and eliminates transfer time from an external mixer to the analyzer, which saves time and increases reliability.
  • Printer
  • Automatically print patient results to eliminate transcription errors and accelerate your lab’s workflow.
  • Barcode Scanner
  • The built-in barcode scanner quickly scans and stores patient identification, saving your laboratory valuable time.
  • Fast Results & High Capacity
  • Perform a complete sed rate test in just 15 minutes. The Excyte 20 holds up to 20 samples, allowing your laboratory to perform up to 80 sed rates per hour.
  • Random Access
  • Increase convenience and flexibility in your lab by running automated tests at any time and in any order.
  • Closed Tube Sampling & Testing
  • Our tubes increase the safety of your laboratory personnel by reducing exposure to bloodborne pathogens while providing superior reading results.
  • RS232 Interface
  • Provides the ability to interface to your laboratory information system.
  • Automatic Temperature Correction
  • Delivers better reproducibility of results by normalizing the values to 18 °C.
Specifications and Important Information

Catalogue number:
Excyte 20 (Glass Tubes): EX-10318
Excyte 20 (Plastic Tubes): EP-10618
Channels: 20
Working Time: 15 or 30 minutes
Weight: 11 lbs
Dimensions (HxWxD): 7 78 in x 13 in x 12 14 in
